Description

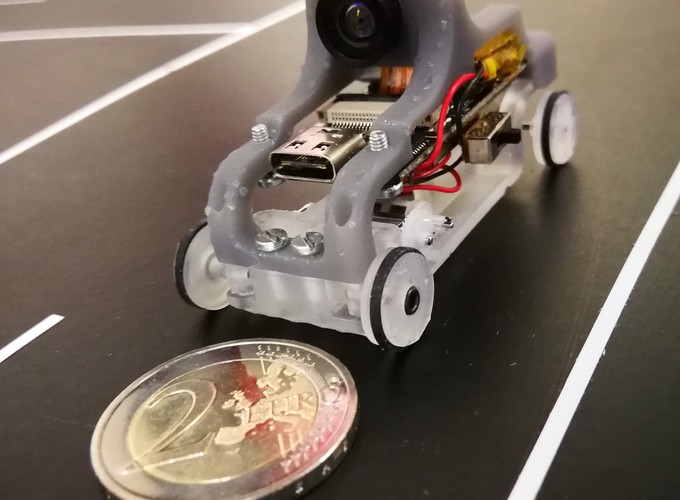

The miniature car is an autonomous driving car in scale 1:63. The experimental setup is derived from the student competition carolo-cup at TU Braunschweig, just in a smaller scale. Research goals are twofold: Let the car drive autonomously in Miniatur Wunderland in Hamburg. Image data shall be collected for use in ML methods Have a cheap small autonomous system which may be used for multi-agent intelligent methods (swarm algorithms).

Technical Details

Property	Description
Scale	1 : 63
Length	60mm
Weight	0,22 kg
Speed	0,3 m/s
Power Supply	LiIon
Antrieb
Sensors	2MP Camera OV2640 wide angle objective 78 degrees
Communication	Wifi
Processor	ESP32 Espressif Systems

Videos

Video: A model car of scale 1:67 drives autonomously in a carolo-cup-like setup. An ESP32 processor is used to do all the calculations necessary for lane recognition and path planning.
